WL-122M Single Point Load Cell: Stainless Steel Design for 10kg-600kg Capacity & 800x800mm Platforms

Product Categories

Brans Measuring And Controlling Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

WL-122M Single Point Load Cell: Stainless Steel Design for 10kg-600kg Capacity & 800x800mm Platforms

Name: WL122M Single Point Load Cell Stainless Steel Design for 10kg600kg Capacity amp 800x800mm Platforms
Brand: BRANS
Price: 1 USD

Brand Name : BRANS

Model Number : WL-112

Place of Origin : China

MOQ : 1pcs

Payment Terms : L/C, T/T, Western Union,Paypal

Delivery Time : 5-7 work days

Packaging Details : Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Load Capacity : 10/20/50/60/75/100/150/200/300/400/500/600kg

Accuracy Class : C3

Non-linearity : ±0.02%F.S.

Repeatability : ±0.01%F.S.

Rated Output : 2.0±0.2mV/V

Zero Balance : ±2%mV/V

Insulation Resistance : ≧5000M2/100VDC

Recommended Excitation : 5~12VDC

Material : Stainless Steel

Safe Overload : 150%F.S

Operation Temp. : -35~70℃

Cable Size : 5x3000mm

Max.platform Size : 800x800mm

Protection Class : IP68

Contact Now

WL-122M Single Point Load Cell: Stainless Steel Design for 10kg-600kg Capacity & 800x800mm Platforms

Features:

Single-point load cell design
Stainless steel construction
Capacity range: 10kg–600kg
Compensates off-center load errors
Supports platforms up to 800×800mm

Applications:

Food & beverage industry
Pharmaceutical weighing
Belt scales & platform scales
Industrial weighing systems
Specialized weighing applications

Specifications:

Capacity	10/20/50/60/75/100/150/200/300/400/500/600kg
Accuracy class	C3
Non-linearity	±0.02%F.S.
Repeatability	±0.01%F.S.
Insulation resistance	≥5000MΩ/100VDC
Recommended Excitation	5~12VDC
Operation temp. range	-35~70℃
Safe overload	150%F.S.
IP class	IP68(Customizable)
Cable size	Φ5×3000mm (Customizable)
Material	Stainless Steel
Max.platform size	800mm×800mm

Dimension(MM):

Load Direction:

WL-122M Single Point Load Cell: Stainless Steel Design for 10kg-600kg Capacity & 800x800mm Platforms

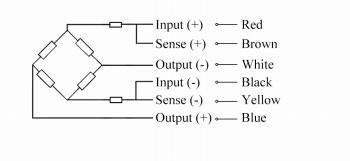

Wiring:

WL-122M Single Point Load Cell: Stainless Steel Design for 10kg-600kg Capacity & 800x800mm Platforms

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
